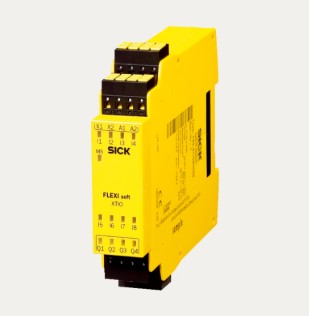

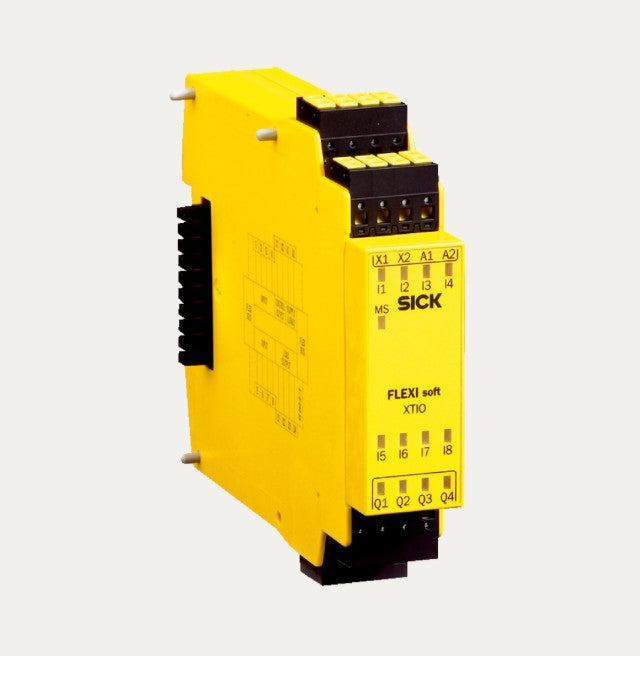

FLEXI SOFT, Safety Controller, FX3-XTIO84002

Name: FLEXI SOFT, Safety Controller, FX3-XTIO84002
Brand: SICK
Availability: InStock

₦0.00 NGN

Sale Sold out

Protection class

III (EN 61140)

Voltage supply

Via FLEXBUS+

Internal power consumption

≤ 2.2 W ¹⁾

Test outputs
Voltage supply	Via FLEXBUS+
Type of output	PNP semiconductors, short-circuit protected
Test pulse generator	2
Output voltage HIGH	15 V DC ... 30 V DC
Output current	≤ 120 mA ²⁾

Outputs
Voltage supply	Via A1, A2
Supply voltage	24 V DC (16.8 V DC ... 30 V DC)
Type of supply voltage	PELV or SELV ³⁾
Type of output	PNP semiconductors, short-circuit protected
Output voltage HIGH	16 V DC ... 30 V DC
Output current	≤ 2 A

¹⁾ Via FLEXBUS+, without streams at test outputs.

²⁾ On each of the two test pulse generators. This makes max. 8 testable safe series connections possible per module, each with max. 30 mA.

³⁾ The current of the power supply that powers the module must be limited to a maximum of 4 A, either through the power supply itself or a fuse.

Module	I/O module
Configuration method	Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)

Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	4.8 x 10^-9 (EN ISO 13849) ¹⁾ 0.9 x 10^-9 (EN ISO 13849) ²⁾
T_M (mission time)	20 years (EN ISO 13849)
