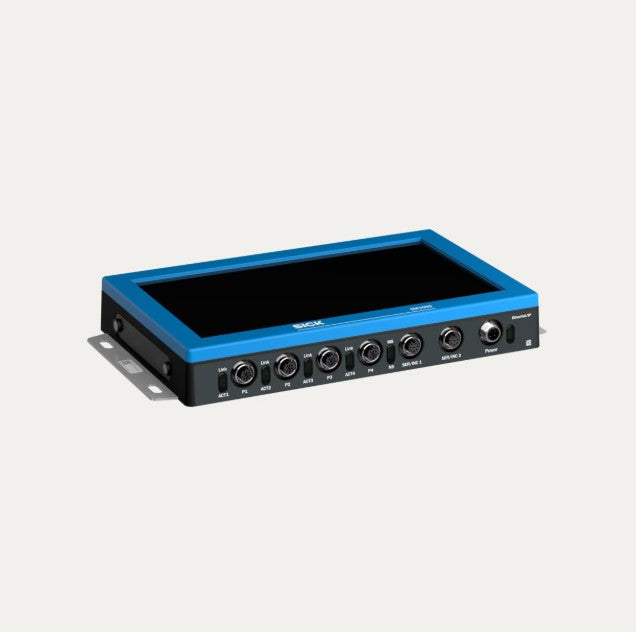

SM1000-E222100

SM1000-E222100

₦0.00 NGN
₦0.00 NGN
Sale Sold out

Features

Product category Programmable devices, IO-Link Master
Supported products

IO-Link Devices

Binary switching sensors

Binary actuators
Further functions

Web server integrated

IIoT interface available (dual talk)
Processor TI SITARA AM6421
Random Access Memory 512 MB LPDDR4
Flash memory 5 GB
Scope of delivery Blind plug (11 x M12)
Application development kit

SICK AppStudio

Can be programmed within the SICK AppSpace environment
Toolkit SICK algorithm API



Mechanics

Display
Size 10.1 ″
Resolution 1,024 dpi x 600 dpi
Brightness 400 cd/m²
Service life of backlight 50,000 h
Viewing angle 80° (right)
80° (left)
80° (top)
80° (bottom)
Color 8-bit LVDS (16.7 million colors)
Touch display Projective capacitative multi-touch TFT
Connections
IO-Link 4 x M12, 5-pin female connector, A-coded
Ethernet 4 x M12, 4-pin socket, D-coded
Serial/INC 2 x M12, 8-pin socket, A-coded
Power supply 1 x M12, 4-pin plug, A-coded
USB-C 1 x USB-C 2.0
Power voltage supply
Supply voltage ≥ 11.5 V DC 1)
Current consumption ≤ 20 mA
Voltage supply
Total current (S1 ... S4) 2 A
Voltage supply (pin 1) 500 mA
Output current port class A (DO) (pin 2) 200 mA
Output current port class A (DO) (pin 4) 200 mA
Output current port class A (DO) (pin 5) 200 mA
Current carrying capacity per port max. 500 mA
Output current
Serial voltage supply 1 A
5 A
Digital inputs
Number 12, configurable
Input characteristics EN 61131-2 type 1
Type PNP
Filter time 0 ms ... 15 ms
Delay time at signal change 2 ms ... 5 ms
Circuit protection Short-circuit protected
Digital outputs
Number 12, configurable
Type PNP
NPN
Push-pull
Switching frequency ≤ 50 Hz
Circuit protection Short-circuit protected
Optical indicators

8 LED yellow (IO activity pin 2 and 5)

4 LED green (IO activity pin 4)

4 LED green (Ethernet bus link)

1 LED green (Fieldbus device status)

1 LED red (Fieldbus device status)

1 LED green (Power supply)
Enclosure rating IP54 (In fastened condition)
Protection class III
Housing material Polyamide (ELEMELT PA514)
Housing color Black
Weight 1,940 g
Dimensions (L x W x H) 292.5 mm x 162.1 mm x 39 mm
Mounting system type Screw-on, 4 hole mounting

1) Class 2 not required.

Diagrams

Dimensional drawingDimensional drawing

PIN assignment Power supplyPIN assignment IO-Link ports

PIN assignment Serial / Encoder portsPIN assignment Ethernet ports
